ES Aktuell 1200

Plastic mould steel with a consistent high hardness across the cross section.

Product features
  • As supplied condition: Quenched and tempered to a hardness of 310-355 HB (1050-1200 N / mm2) with uniformly high hardness over the cross section, very good weldability, good polishability and graining suitability, high thermal conductivity and higher tool service life.

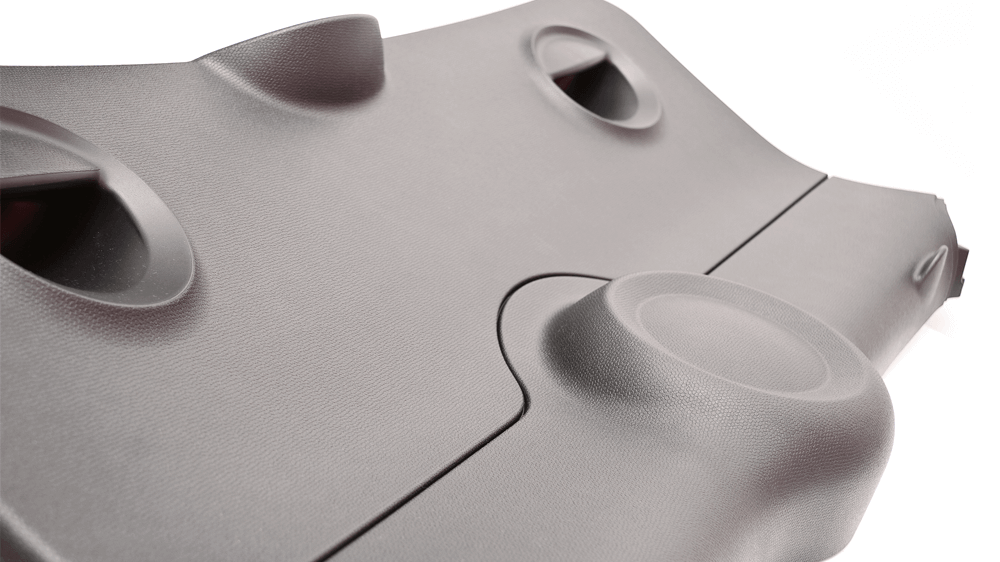

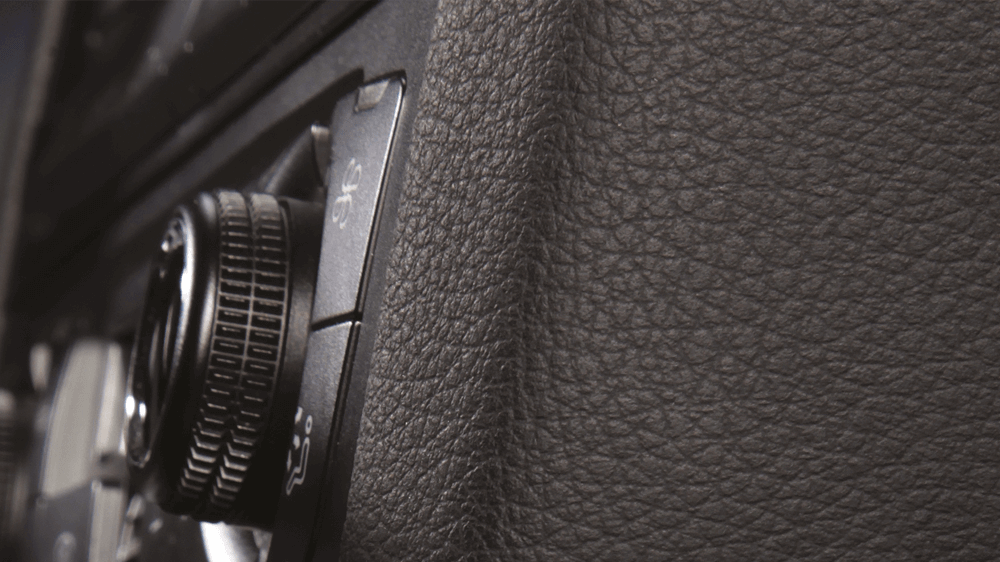

  • Applications: Plastic mould toolsteel for the large moulds with high wear resistance, moulds for vehicle bumpers, dashboards, moulds for the largest external car body parts and other large moulds.

Technical data

Chemical analysis
C Mn Cr Ni Mo
0.25% 1.4% 1.3% 1.0% 0.5%

Technical Information

PDF, 1.3 MB
