1.2344 (H13)

Hot work tool steel with excellent heat resistance (H13)

Product features
  • X 40 CrMo V 5-1
  • As supplied condition: Soft-annealed to max. 229 HB (770 N / mm2) Hot work steel with excellent heat resistance, high wear resistance, best thermal shock resistance, very good degree of purity and excellent homogeneity, nitridable.
  • Applications: Tools for forging machines, dies, die inserts, extrusion dies, hot shear knives and for plastics processing. *Depending on the application, it is recommended preheating the forming tool.

Technical data

Chemical analysis
C Si Cr Mo V
0.4% 1.0% 5.3% 1.4% 1.0%

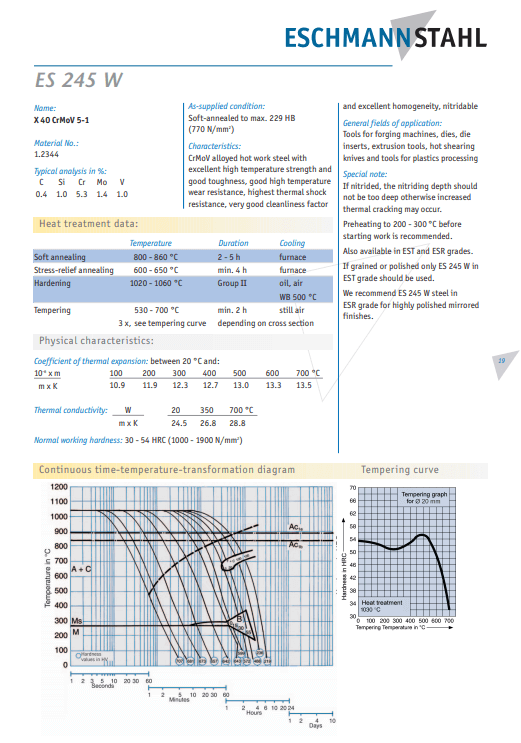

Technical Information

PDF, 311 KB
