ES Primus SL

As supplied condition: Annealed to a hardness of 230 HB (780 N / mm2) ESR. Satisfies the most stringent demands in Modern plastic technology and die casting applications for aluminium, magnesium and other non-ferrous metals such as zinc, tin and lead.

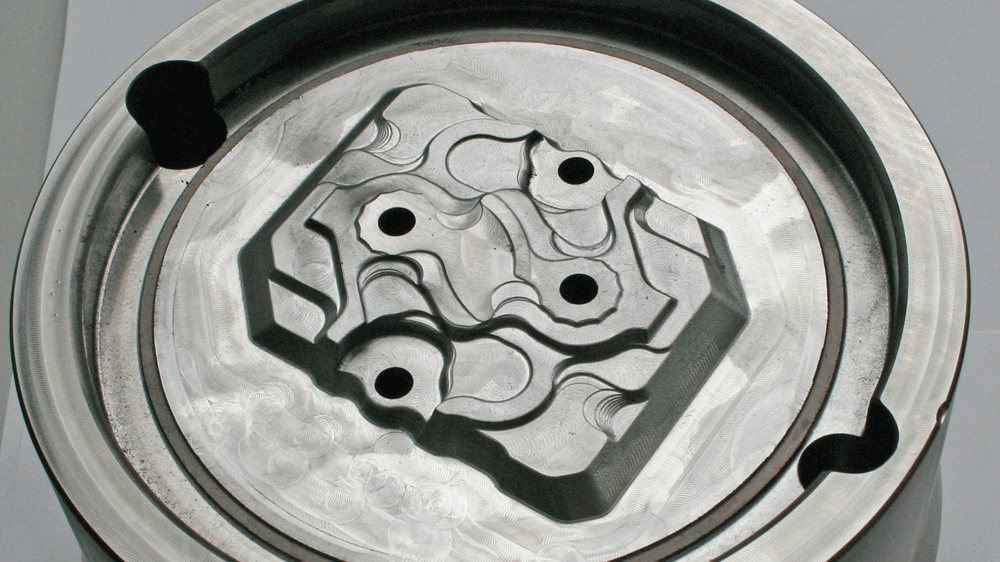

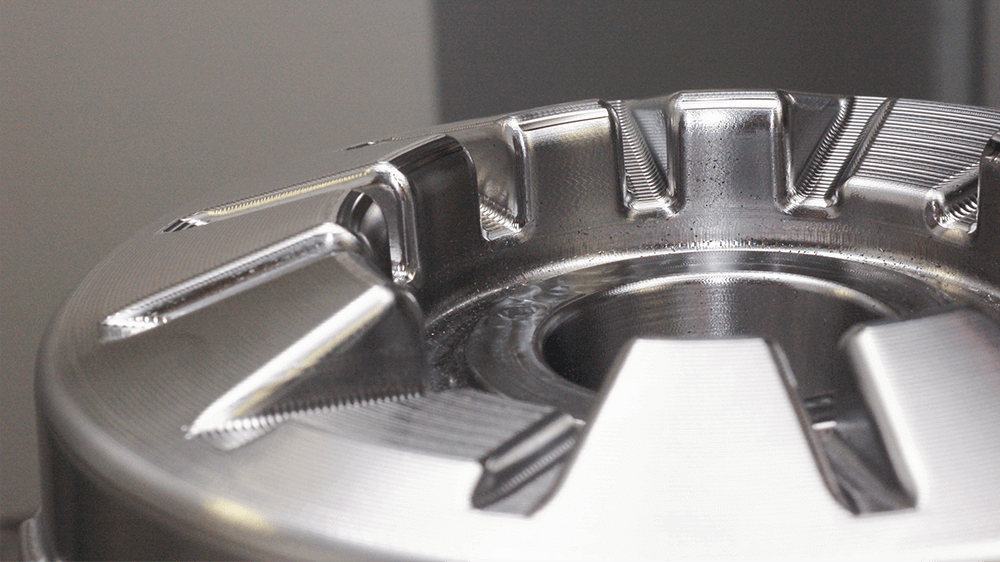

Applications: Hot extrusion, forging dies, shear blades and hot steel moulds that are subjected to extreme shocks. Whenever high resistance to thermal and mechanical induced cracking is required.

Applications

Aluminium Extrusion Blow Moulding Compression Moulding Die-casting Forging Injection Moulding Plastic Extrusion Rolling Production Sprue Bushings

Chemical analysis

C	Si	Cr	Mo	V
0.36%	0.3%	5.0%	1.4%	0.4%

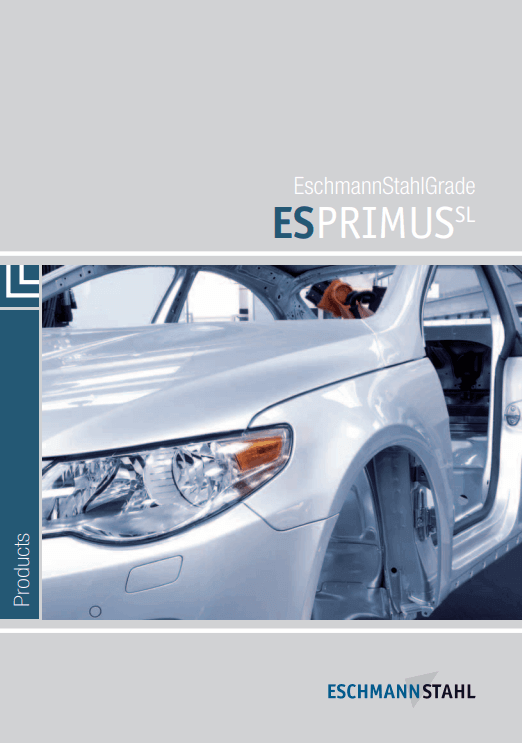

Technical Information

PDF, 2 MB
